Visualizations of proposed Waban Village Center Districts

Weight:
0

Issue summary

The Waban Area Council have begun the process of applying the proposed zoning to discreet Waban parcels in Google Earth Pro. Shown below is the link to VC1/VC2 visualizations presented at our December 2022 meeting.

This webpage hosts recent 3D visualizations for the Strong Block parcel.

Issue full description

The process of 3D imaging:

  • Import shape files for the individual parcels from the City of Newton GIS database (provides in situ parcel boundaries and existing buildings.)
  • The utilization of measurement tools for the implementation the proposed zoning (dimensional controls) in order to create and overlay lot specific zoning envelopes.
  • Provides visualization of the proposed zoning envelopes in the existing built environment.

The Waban Area Council gave a presentation and held a discussion of the rezoned residential parcels on Beacon St/Manitoba Rd/Waban Ave. Here is the link to the presentation - link.

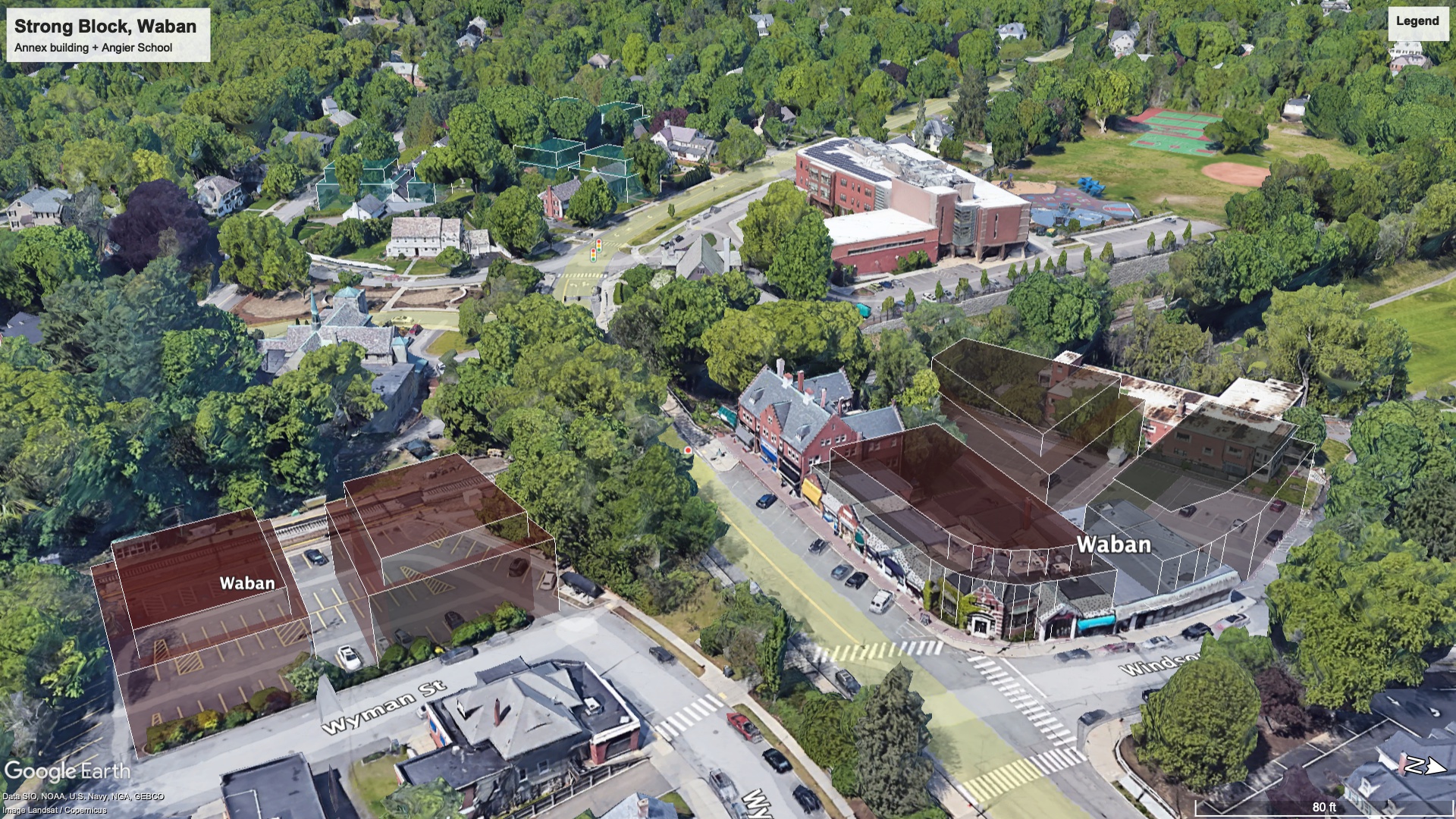

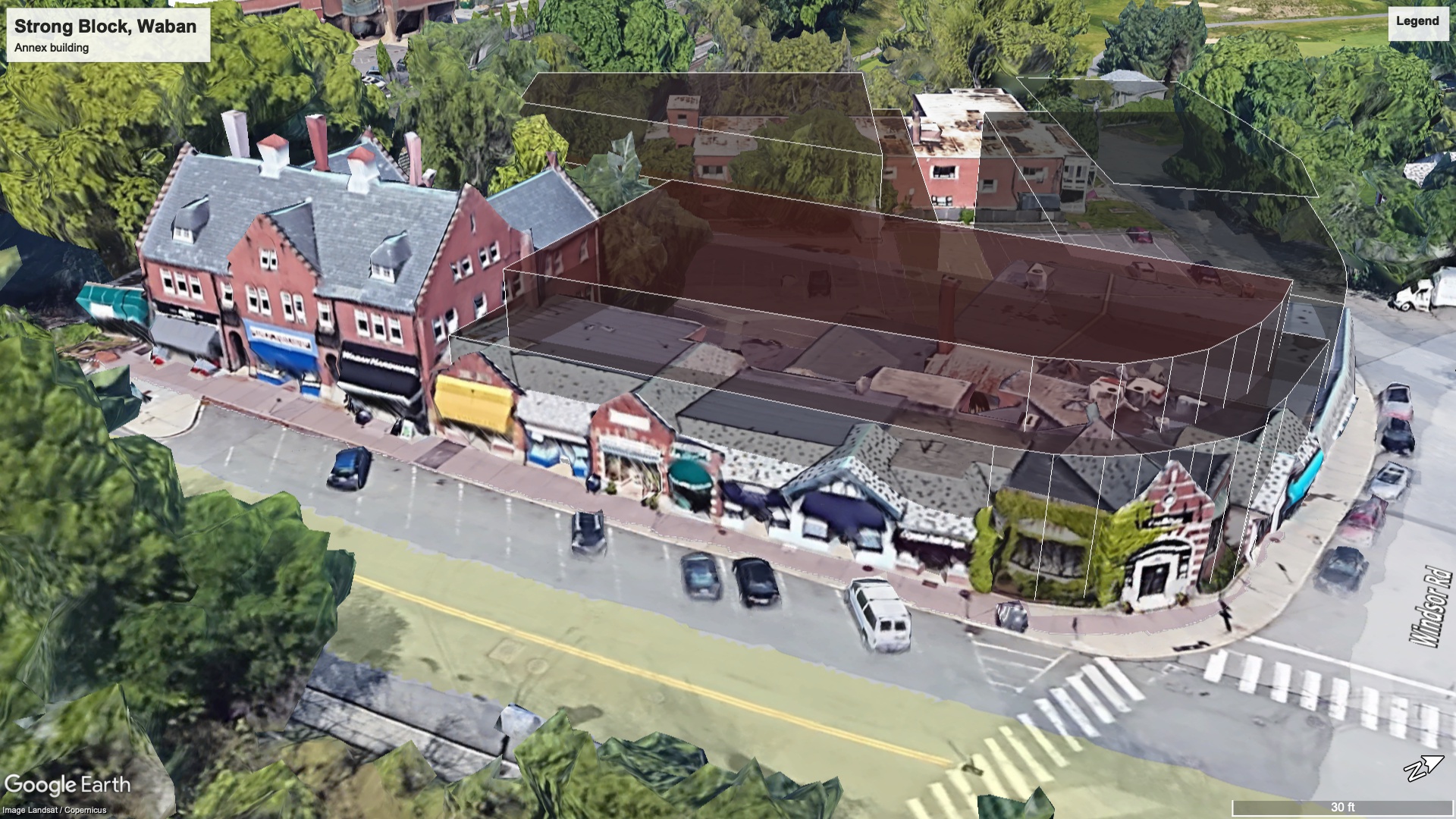

Here is recent work of the proposed zoning of the Strong Block parcel to VC2. Clicking on the image bring up a larger version.

waban-center-ariel-2

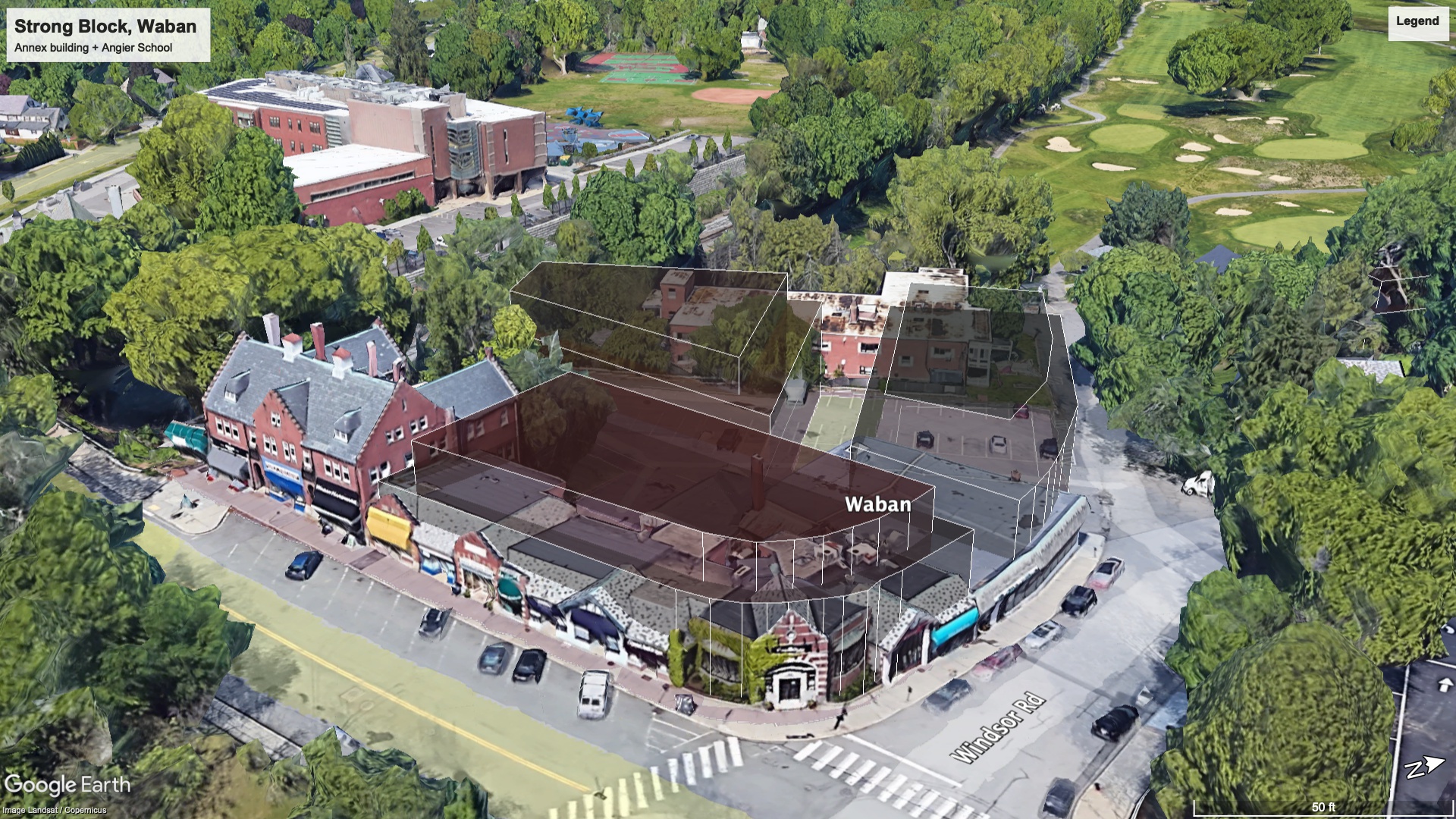

strong-block-annex-1

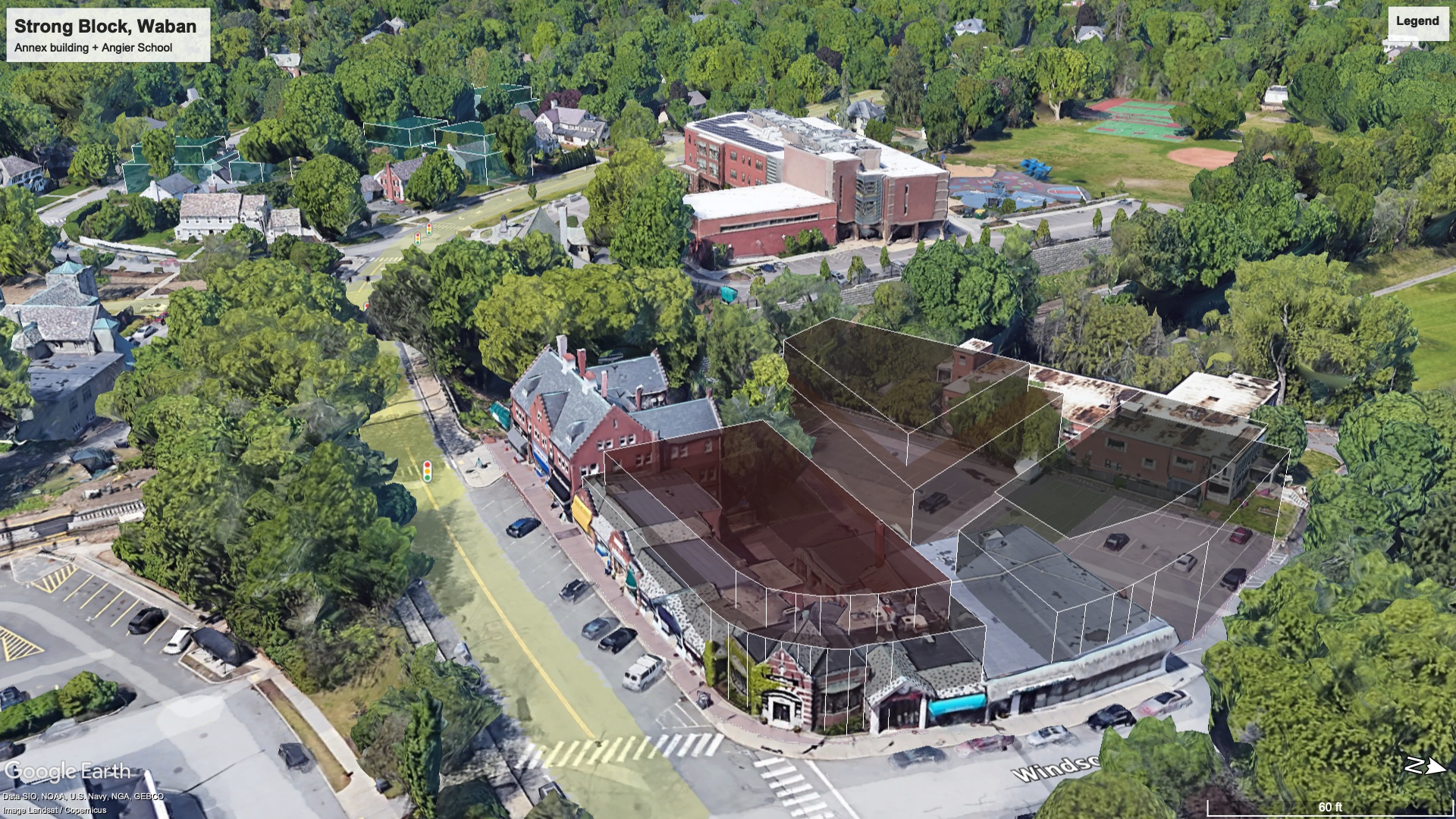

strong-block-annex-2

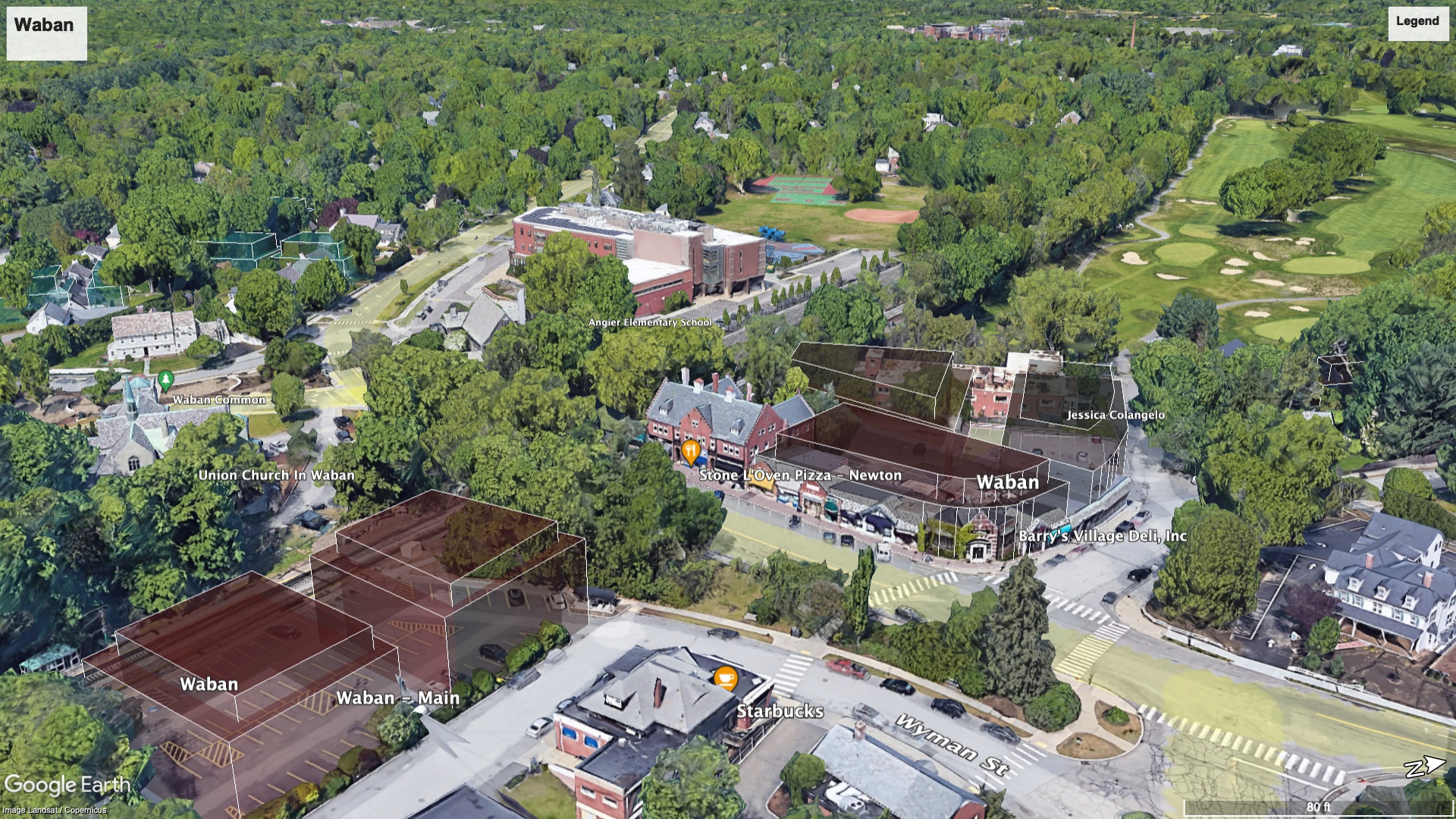

Waban Center ariel-1

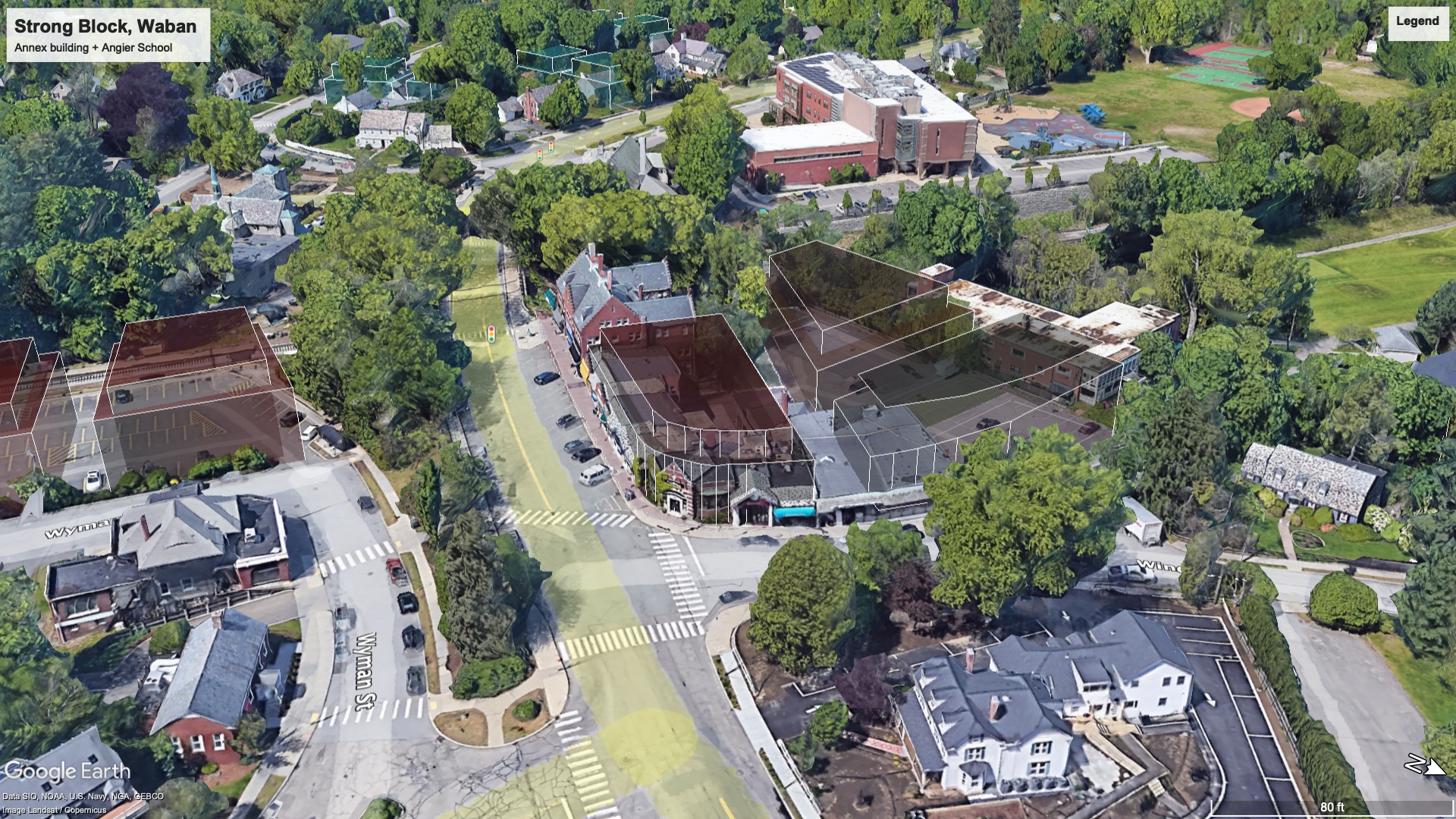

waban-center-ariel-4



Strong Block ariel-1

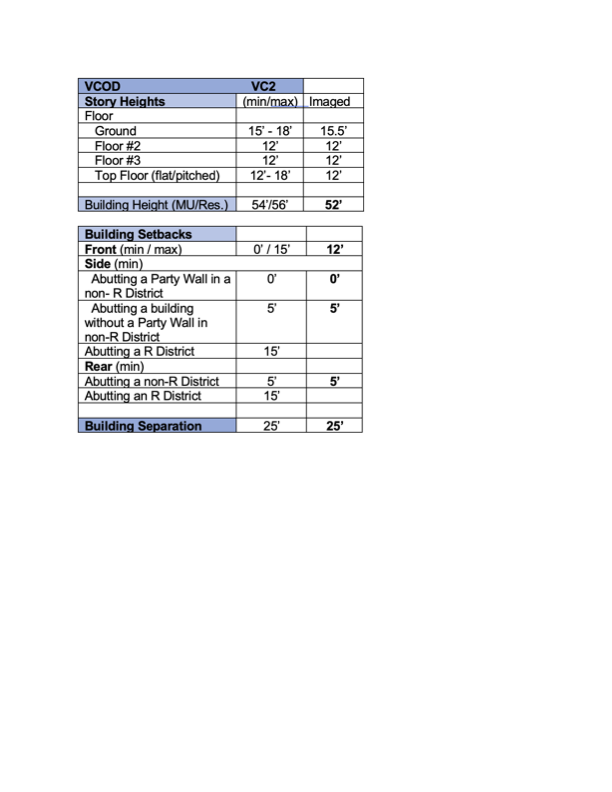

Zoning legend utilized in the 3D imaging.
